AMU1206LF Allied Moulded Products Electrical Enclosures

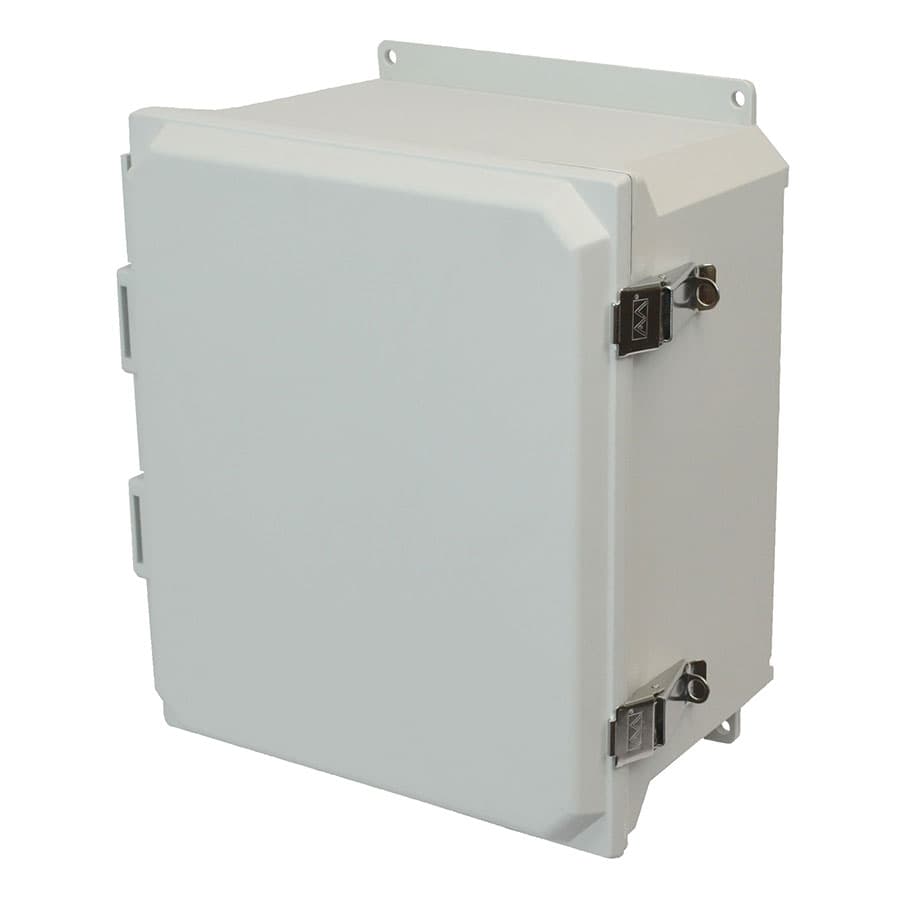

Allied Moulded Products AMU1206LF 12"x10"x6" ULTRALINE® fiberglass wall mount enclosure assembly with hinged cover and stainless-steel snap latch
Allied Moulded Products

Part#:AMU1206LF

Manufacturer:Allied Moulded Products

Product Lifecycle:Active

Get a quick Quote!

12"x10"x6" ULTRALINE® fiberglass wall mount enclosure assembly with hinged cover and stainless-steel snap latch

About the manufacturer: Allied Moulded Products is one of the manufacturers that offers Electrical Enclosures that you can order at marketplace.quotebeam.com. Allied Moulded offers a wide range of products for residential and manufactured housing, including fiberglass range/dryer receptacle boxes, floor boxes, lampholders, luminaires, and more. These products are designed to meet the needs of both electrical professionals and DIY enthusiasts.

Check out the AMU1206LF Allied Moulded Products price in the box on the right side or send a quick quote.

Product Details

  • Width10.27 in
  • Height12.05 in
  • Depth6 in
  • MaterialFiberglass
  • ColorGray
  • NEMA Rating4X
  • UL Standard508A
  • UL CCNNITW
  • UL File No.E120175
  • TypeWallmount
  • Door Qty1
  • Depth:
    6 in
  • Enclosure Type:
    JIC Size
  • Cover Type:
    Opaque
  • Height:
    12.05 in
  • Width:
    10.27 in
  • Country of Origin:
    United States of America
  • UPC:
    85339959458
  • Closure Type:
    Metal Snap Latch
  • Carton Quantity:
    1
  • Mounting Description:
    Nonmetal flange fastened to back side brass inserts
  • Usable Depth:
    6.12 in
  • Standards:
    UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
  • Patents:
    U.S. Patent No. 7,572,975
  • UNSPSC:
    39121324
  • Carton Weight:
    6 lbs
  • Color:
    Gray (RAL 7035)
  • Brand:
    ULTRALINE®
  • Application:
    Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
  • Material:
    ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
  • Volume:
    867 cu. in.
  • Additional Materials:
    316 stainless steel external hardware (hinges/latches/fasteners), Polycarbonate mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
  • Features:
    Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel o

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents AMU1206LF Specs

AMU1206LF ViewPDFTechDoc.pdf

1-year warranty
